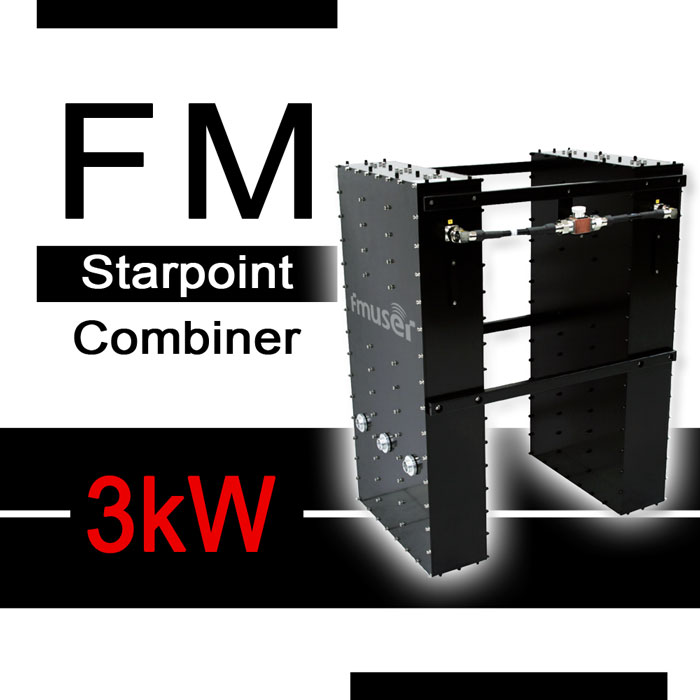

87-108MHz 7-16 DIN 3kW Branched Type FM Combiner Solid-state 2 Way Starpoint Cavity Duplexer with 3 or 4 Cavity for FM Station

FEATURES

  • Price (USD): Please Contact Us
  • Qty (PCS): 1
  • Shipping (USD): Please Contact Us
  • Total (USD): Please Contact Us
  • Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air

Main Features

  • Copper, silver-plated brass, and high-quality aluminum alloy
  • 3-cavity or 4-cavity filters
  • Low insertion loss and VSWR
  • High isolation
  • Compact design
  • Best Low cost broadcast solution for the budget buyer
  • The tailored and multi-structure design for broadcast station

High Quality Transmitter Combiners Also in Stock

Starpoint (Branched) FM Combiners Up to 20kW:



Balanced (CIB) FM Combiners Up tp 120kW:





Looking for more transmitter combiners for your broadcast station? Check these!



87-108 MHz 1kW 1 5/8" 2 Cav. N-Channel FM Starpoint Combiner Radio Repeater Duplexer High Power Radio Combiner for FM Station 167-223 MHz 4 or 6 Cav. 7/16 DIN 1kW Starpoint VHF Transmitter Combiner Compact 6 Cavity Duplexer TX RX Duplexer for TV Station 470-862 MHz 7/16 DIN 1kW Solid State UHF Transmitter Combiner Starpoint Compact 1000W 6 Cavity Duplexer for TV Broadcasting 1452-1492 MHz 1 5/8" 6 Cavity 4kW L Band RF Combiner Compact Digital 3 Channel Combiner Solid-state RF Triplexer for TV Station
FM Combiners VHF Combiners UHF Combiners L Band Combiners

  • 3kW FM Starpoint Combiner x 1PCS



Please Contact Us for More Infomation

Model

A

A1

Configuration

Starpoint

Starpoint

Frequency Range

87 - 108 MHz

87 - 108 MHz

Min. Frequency Spacing

3 MHz

1.5 MHz

Max. Input Power

2 x 1.5 kW

2 x 1.5 kW

VSWR

≤ 1.1

≤ 1.1

Insertion loss

f0

≤ 0.30 dB

≤ 0.50 dB

f0±300kHz

≤ 0.35 dB

≤ 0.60 dB

f0±2MHz

≥ 25 dB

≥ 40 dB

f0±4MHz

≥ 40 dB

≥ 60 dB

Isolation between Inputs

≥ 45 dB

≥ 45 dB

Connectors

7-16 DIN

7-16 DIN

Number of cavities

3

4

Dimensions

L × 550 × 940 mm *

L × 700 × 940 mm *

Weight

~ 66 kg

~ 85 kg
