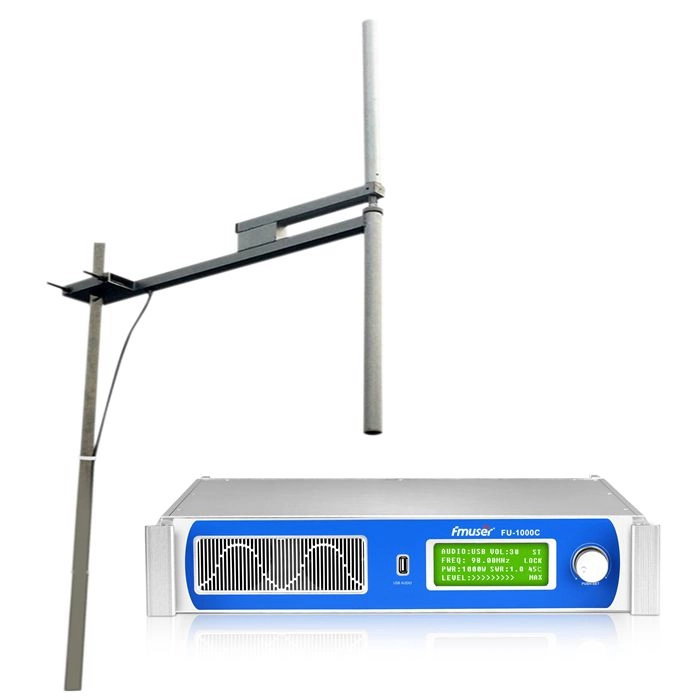

FU-1000C 1KW FM Transmitter with 1 Bay Antenna and Accessories

FEATURES

Price (USD): 2799
Qty (PCS): 1
Shipping (USD): 0
Total (USD): 2799
Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer

Budget needs to be considered before building an FM radio station, is there such a solution to save you from the equipment buying cost? Well, check this 1KW FM transmitter package! A robust 1000W FM transmitter FU-1000C an high gain dipole antenna FU-DV2 are included, this is the best price you'll ever seen for a 1000 watts FM transmitter package. Please contact for more details!

RF Part
Modulation					Frequency Modulation
Frequency Stabilization Method					PLL Phase-locked loop
Nominal Transmission Frequency					87 MHz - 108 MHz (other frequencies can be customized)
Frequency Deviation					± 75 Hz
The Frequency Step Value					50 kHz
The Output Impedance					50 Ω
RF Output Connector					L29-K or other specified connectors
The Output RF Power					0 -1000 W continuously adjustable
The Output Power Deviation					± 10 W
RF efficiency					> 75%
Pilot Frequency Deviation					± 0.1 Hz
Harmonic Radiation Suppression					< -70 dB
Internal Residual Wave Radiation					< -70 dB
High-Temporal Harmonic Radiation					< -65 dB
Parasitic Modulation Noise					< -50 dB

Audio Part
Audio Input Interface					XLR / USB / RCA
Audio Input Level					< 15 dBV
Sign Noise Ratio					≥ 70 dB (1 kHz, 100% modulation)
Stereo Separation					≥ 60 dB (L → R, R → L)
Distortion					≤ 0.02% (30 Hz - 15000 Hz, 100% modulation)
Frequency Response					50 - 15000 Hz
Audio Preload					0 μs / 50 μs / 75 μs optional
Left And Right Channel Level Difference					≤0.05 dB (100% modulation)

General Part
Chassis Size					2U (length 530 mm × width 340 mm × height 100 mm)
Chassis Size					2U (length 20.8-inch × width 13.3-inch × height 4 inch)
Machine Weight					10 kg
Machine Weight					22 lbs
Heat Dissipation					Mode: Air-cooling
Chassis Standard					19 inches
External Control Interface					RS232
The Protection Mode					high temperature and high VSWR protection supported
Relative Humidity					< 95%
Altitude Height					< 4500 M
Power Supply Voltage					100 VAC - 240 VAC / 50 Hz
Run Ambient Temperature					-10 ° C - + 45 ° C
Maximum Power					Consumption: 1500 W

Frequency Range					87-108 MHz
Input Impedance					50 ohm
VSWR					<=1.3
Gain					based on requirement
Polarization					Vertical
Horizontal Pattern					based on requirement
Vertical Pattern					Null fill, beam tilt, based on requirement
Maximum Power Input-watts					1KW/3KW/5KW/10KW
Lighting Protection					Direct Grounding
Connector					L29 female
Dimension					1400×900×50 MM (L/W/D)
Weight					5kg with hard ware mounting
Wind surface					0.05 m²
Wind load					9.8kg(wind speed at 160km/h-without radome)
Max wind velocity					220 KM/H
Internal parts					brass
Height of array					Subject to number of bays(refer to table)
Package Volume weight					11 KG
Packig Size					86 x 88 x 7 CM
Pressurizzable					YES
Radome colour					white(optional)
Mounting hardware					hot dip galvanized steel clamps

1 x FMUSER FU-1000C 1U 1000W FM Transmitter

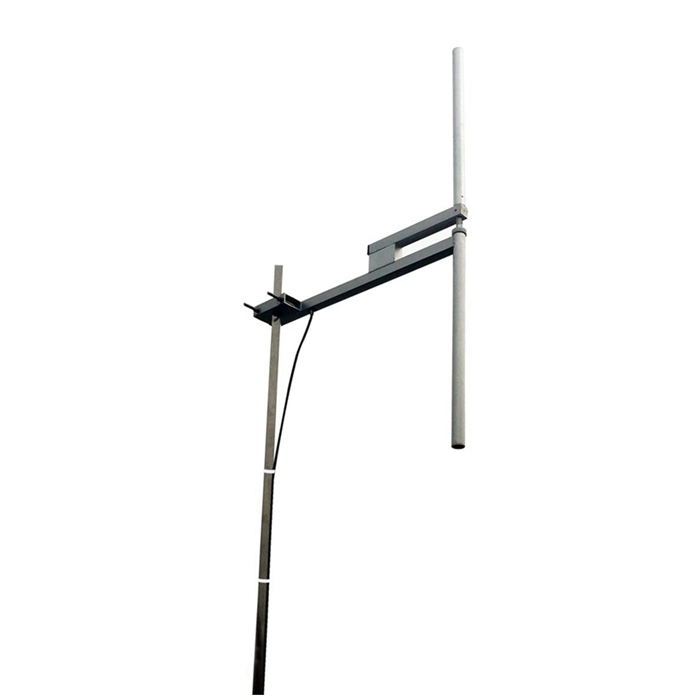

1 x 1bay FU-DV2 FM Dipole Antenna
1 x 30 meter 1/2'' Cable with connectors
