470-862 MHz 8kW UHF 4 Cavity Duplexer 1 5/8" Compact TX Combiner Channel Plus High Power UHF Transmitter Combiner for TV Station

FEATURES

Price (USD): Please Contact Us
Qty (PCS): 1
Shipping (USD): Please Contact Us
Total (USD): Please Contact Us
Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer

Main Features

Copper, silver-plated brass and high quality aluminum alloy
4-cavity filters
Low insertion loss and VSWR
Compact design
Convenient for multi-channel integration

High Quality Transmitter Combiners Also in Stock

Starpoint (Branched) UHF Combiners Up to 20kW:

Balanced (CIB) UHF Combiners Up tp 120kW:

Stretchline UHF Combiners:

8kW/20kW Stretchline UHF Transmitter Combiner 1 5/8" 3 1/8" Input

Looking for more transmitter combiners for your broadcast station? Check these!


FM Combiners	VHF Combiners	UHF Combiners	L Band Combiners

8kW Banlanced UHF transmitter Combiner x 1PCS

Please Contact Us for More Infomation

Terms		Specifications
Model		FCB-5212-1

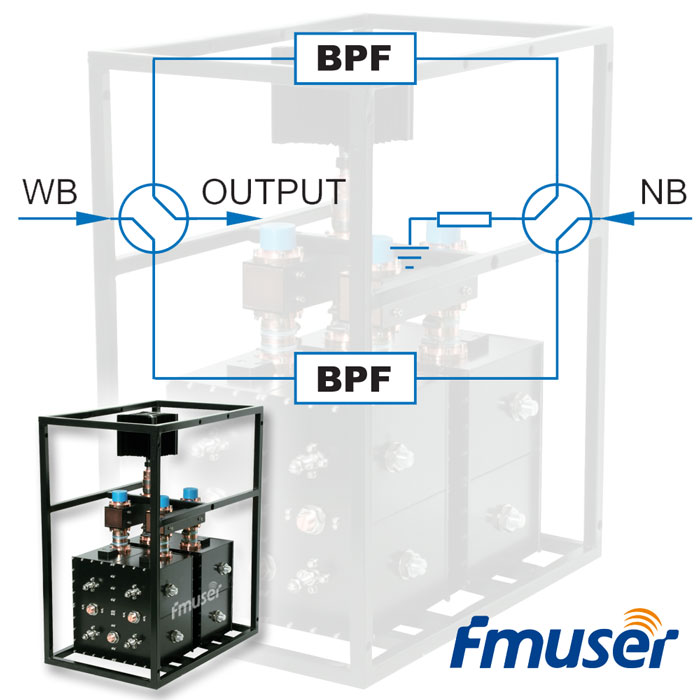

Configuration		CIB
Frequency range		470 - 862 MHz
Min. channel spacing		1
Narrowband input
Max. input power		2 kW *
VSWR		≤ 1.1
Insertion loss	f0	≤ 0.40 dB
	f0±4MHz	≤ 0.45 dB
	f0±12MHz	≥ 20 dB
	f0±20MHz	≥ 35 dB
NB to WB isolation		≥ 35 dB
Wideband input
Max. input power		8 kW *
VSWR		≤ 1.1
Insertion loss		≤ 0.1 dB
WB to NB isolation		≥ 50 dB
Connectors		1 5/8"
Number of cavities		4
Dimensions		580 × 380 × 690 mm
Weight		~ 45 kg
